Controller Details

Toxic Gas Sensors

Toxic Gas Sensors

The GCS Garage Ventilation Control Panel has a variety of options to meet the needs of any facility. The controller is part of a system that includes toxic gas sensors, control devices and visual/tone alarm devices. The controller is fully configured and programmed for plug and play field installation. Satellite panels allow expansion of the system to provide control to any size building. The panel is designed to meet safety requirements for enclosed parking garages and other structures. Panel mounted 12" graphical display. Native BACnet IP and MS/TP protocols.

Satellite panels for system expansion.





APPLICATIONS

-    Parking Garages.

-    Car Dealerships

-    Ambulance/Fire Station Bays

-    Vehicle Repair Facilities

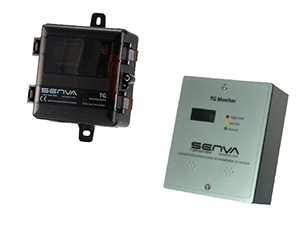

UL Listed TG Series sensors can be ordered as individual CO or NO2 sensors or as a combination of CO&NO2 sensors in a shared enclosure. CO and NO2 sensor components are listed to UL2075. The analog output model features 2 outputs that support daisy chain wiring - multiple sensors may be used in a parallel sequence (0-10V) for cost effective coverage of large areas. The unit can also act as a stand alone controller, utilizing the relay for exhaust fan operation or the output for direct control of a VFD. The BACnet model provides native BACnet MS/TP network communication with no adapter required. Standard features include network auto-configuration, a programmable fan relay, LED indicators, integrated display and audible alarm.





APPLICATIONS

-    Parking Garages

-    Mechanical Rooms

-    Alert occupants of elevated gas levels

-    Direct control of exhaust fans



Operates as sensor in GVS Garage Ventilation System, or as stand-alone gas detector. Individual CO, NO2, or dual sensing elements in one enclosure. Native BACnet MS/TP or Analog output models. Standard LCD with intuitive set up menu.



The SLM500 Series is a multifunctional LED beacon and sounder combination developed with a multiple input technology that allows three separate levels of alarm controllable via independent electric contacts. Channel 1 includes a simulated strobe (triple flash) visual signal only. Channel 2 adds an audible tone, selectable from 32 tones via dip switch, to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone selectable from 32 different tones, for a total of 64 unique

tones. The volume of a selected tone is adjustable (65 dBa to 105 dBa for the highest performing tone). Its enclosure is made from a self-extinguishing polycarbonate material with high impact and UV resistance. The mounting base and strobe/ sounder are sold separately. An optional protective wire dome is available for use in applications to protect the horn and strobe from being damaged once installed in your building. Other options may be available upon request. Contact GCS to discuss your application in greater detail or for more information regarding the strobes and audible alarm series.





APPLICATIONS

-    Parking Garages

-    Equipment Status



Multifunctional LED Beacon/Sounder

4 Available Colors plus Clear

64 Selectable Tones

Long-Lasting 3.9" LED Strobe.

4 Available Colors
